2021 Honda FourTrax Rancher 4X4 EPS

SOLD

Your Price: $5,988
Request More Info

WORK OR FUN, RANCHER’S GOT YOU COVERED
Choice: It’s why restaurants have more than one item on the menu, or why you have more than one tool in your toolbox. Nobody knows what you want—or need—like you. Which is why we offer eight models in Honda’s 2021 FourTrax Rancher lineup. Every one is loaded with the features you want, like rugged front and rear racks, a spacious front utility compartment, wide front drive-shaft guards, and an easy-to-use reverse system. Plus, our automatic DCT models give you an override shifting control, making this great transmission choice even better. So check out the whole menu, then take your pick—you can’t make a bad choice here.

AUTOMATIC DCT
The Rancher’s Honda Automatic DCT transmission o ers strong internals, fast shifts, excellent control, true compression-braking capability, and an automatic program that upshifts and downshifts while you concentrate on riding. It’s one of the best available choices you can make.

PROGRAMMED FUEL INJECTION
Being able to count on crisp performance and starting under any conditions is a must for anyone who depends on their ATV. Thanks to Honda Programmed Fuel Injection (PGM-FI)—featuring a 34mm throttle body, 12-hole injector, and an oxygen sensor that allows the fuel mapping to instantaneously adjust to any riding condition—the Rancher not only ensures trouble-free operation in the cold and at varying altitudes, it reduces emissions and enhances fuel efficiency.

INDEPENDENT REAR SUSPENSION (IRS)
The Rancher Automatic DCT with Independent Rear Suspension (IRS) has over 8 inches of travel and 9 inches of clearance. That returns two big benefits: first, it helps ensure constant tire contact with the ground for superior traction; second, it gives you a smooth ride over rough terrain, so you don’t get beat up on the trail.

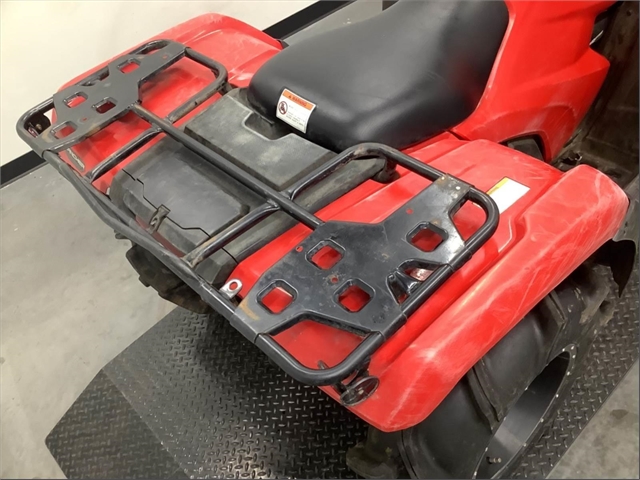

FRONT AND REAR CARGO RACKS
The Rancher’s racks feature strong, steel construction, but now they include a larger fl at area. Better yet, they’re designed to integrate with our Honda Pro-Connect™ system. You can quickly attach and detach accessories like our cargo boxes, without tools, for added fl exibility and convenience.

FOURTRAX RANCHER 4X4 EPS
Premium Features

  • Electric Power Steering
  • TraxLok 2WD/4WD
  • Digital Meter

Standard Features

  • Compact, 420cc OHV PGM-FI engine
  • All FourTrax Rancher 4x4 Automatic DCT models feature Honda's Automatic DCT transmission
  • All other FourTrax Rancher models feature conventional ATV manual-shift transmissions
  • All FourTrax Rancher 4x4 IRS models feature Independent Rear Suspension and rear disc brake
  • All other FourTrax Rancher models feature swingarm rear suspension and rear drum brakes
  • Status:
    Pre-Owned
  • Vehicle:
    2021 Honda FourTrax Rancher 4X4 EPS
  • VIN:
    1HFTE40L3M4700857
  • Model Number:
    TRX420FM2M
  • Color:
    Red
  • Location:
    Naples Powersports and Equipment
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.3
  • Rear Brake Diameter (mm):
    160
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.41
  • Bore (mm):
    86.5
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.9
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    420
  • Displacement (ci):
    25.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    34
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.82
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.7
  • Seat Height (mm):
    856
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    29.9
  • Capacity (kgs):
    60.3
  • Capacity (lbs):
    133
  • Capacity (lbs):
    66
  • Fender Storage Location:
    Front

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    6.7
  • Rear Travel (mm):
    170

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    7.2
  • Ground Clearance (mm):
    182.9
  • Height (in):
    46.2
  • Height (mm):
    1173.5
  • Length (ft):
    6.9
  • Length (ft/ft):
    6
  • Length (ft/in):
    10.8
  • Length (in):
    82.8
  • Length (mm):
    2103.1
  • Towing Capacity (kgs):
    384.7
  • Towing Capacity (lbs):
    848
  • Turning Radius (ft):
    9.2
  • Wet Weight (kg):
    285.3
  • Wet Weight (lbs):
    629
  • Wheelbase (in):
    50
  • Wheelbase (mm):
    1270
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 24 x 8-12
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 24 x 10-11
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    11
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
