2019 Honda FourTrax Rancher 4X4

ON SALE!! $5999

Your Price: $6,299
Request More Info

Electric Power Steering (EPS)

EPS Steering (available on two of our four-wheel-drive models) features torque sensors that measure how much force you're applying and then tailors how much assistance you need. Our specially engineered mounting system increases stiffness and enhances handling. It helps make your life way easier, especially in challenging terrains.

Honda Automatic Dual-Clutch Transmission

Strong internals, fast shifts, excellent control, true compression-braking capability in steep terrain and an automatic program that upshifts and downshifts while you concentrate on riding—the Honda automatic dual-clutch transmission (DCT) has it all. It’s one of the best choices you can make when choosing your transmission.

IRS or Swingarm?

We have both. Our 2019 Rancher models offer Independent Rear Suspension (IRS) for a smoother ride and increased traction over uneven terrain. Alternately, the swingarm models offer great capability when tackling tough chores.

  • Status:
    Pre-Owned
  • Vehicle:

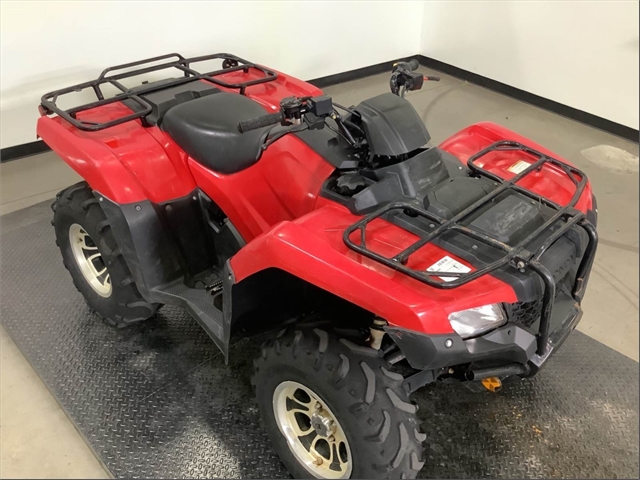

    2019 Honda FourTrax Rancher 4X4
  • VIN:
    1HFTE4039K4505309
  • Model Number:
    TRX420FM1
  • Color:
    Red
  • Location:
    Naples Powersports and Equipment
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.3
  • Rear Brake Diameter (mm):
    160
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.41
  • Bore (mm):
    86.5
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.9
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    420
  • Displacement (ci):
    25.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    34
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.82
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    33.7
  • Seat Height (mm):
    856
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    29.9
  • Capacity (kgs):
    60.3
  • Capacity (lbs):
    133
  • Capacity (lbs):
    66

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    6.7
  • Rear Travel (mm):
    170

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    7.2
  • Ground Clearance (mm):
    182.9
  • Height (in):
    46.2
  • Height (mm):
    1173.5
  • Length (ft):
    6.9
  • Length (ft/ft):
    6
  • Length (ft/in):
    10.8
  • Length (in):
    82.8
  • Length (mm):
    2103.1
  • Towing Capacity (kgs):
    384.7
  • Towing Capacity (lbs):
    848
  • Turning Radius (ft):
    9.2
  • Wet Weight (kg):
    275.8
  • Wet Weight (lbs):
    608
  • Wheelbase (in):
    49.9
  • Wheelbase (mm):
    1267.5
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 24 x 8-12
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 24 x 10-11
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    11
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
