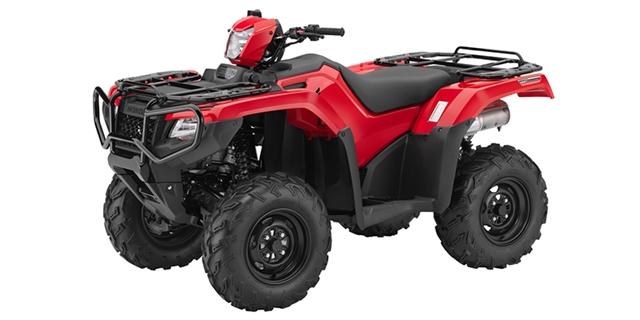

2017 Honda FourTrax Foreman Rubicon 4x4 EPS

SOLD

Your Price: $9,980

285 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2017 Honda FourTrax Foreman Rubicon 4x4 EPS - SOLD . I'm in the area and you can reach me at or on my phone at .

What is entailed in taking a great utility ATV and expanding its recreational capabilities? In the case of the 2017 Foreman Rubicon, the transition was accomplished in part through a trio of features each known by three-letter acronyms: IRS, DCT, and EFI. By outfitting this popular 4×4 model with independent rear suspension, the choice of a conventional manual transmission, or the Honda Automatic DCT with Drive/Low gearbox and programmed electronic fuel injection, Honda engineers vastly improved its versatility, while also increasing its ability to deliver customer confidence, comfort, and fun. Accompanying these important updates was a general redesign of the entire vehicle, which made the Foreman Rubicon not only the best-value trail machine in its class, but also the best handling and most comfortable Honda ATV ever produced.

  • Status:
    Pre-Owned
  • Vehicle:
    2017 Honda FourTrax Foreman Rubicon 4x4 EPS
  • VIN:
    1HFTE4527H4202263
  • Model Number:
    TRX500FM6
  • Color:
    Red
  • Location:
    Naples Powersport and Equipment
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    3.62
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    475
  • Displacement (ci):
    29
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    35.8
  • Seat Height (mm):
    909.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    44.9
  • Capacity (kgs):
    84.8
  • Capacity (lbs):
    187
  • Capacity (lbs):
    99

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.3
  • Front Travel (mm):
    185.4
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    8.5
  • Rear Travel (mm):
    215.9

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    9.4
  • Ground Clearance (mm):
    238.8
  • Height (in):
    48.6
  • Height (mm):
    1234.4
  • Length (ft):
    7.04
  • Length (ft/ft):
    7
  • Length (ft/in):
    0.5
  • Length (in):
    84.5
  • Length (mm):
    2146.3
  • Towing Capacity (kgs):
    599.7
  • Towing Capacity (lbs):
    1322
  • Wet Weight (kg):
    313
  • Wet Weight (lbs):
    690
  • Wheelbase (in):
    50.9
  • Wheelbase (mm):
    1292.9
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 25 X 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 25 X 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
