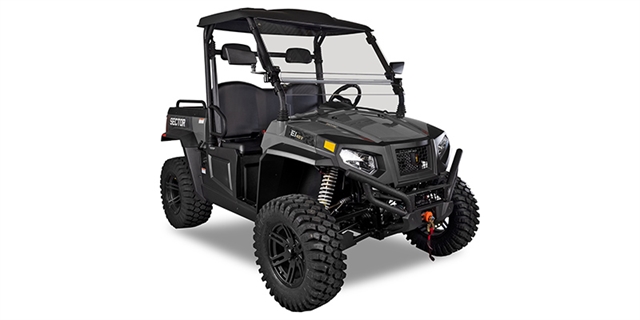

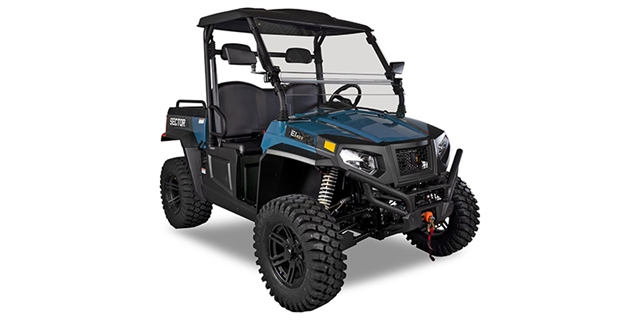

2023 Hisun Sector E1

MSRP: $13,199 USD

422 people have recently viewed it.
Request More Info

The 48 Volt 30 HP AC drive train is powerful enough to go over the toughest terrain without all the noise of a gas-powered engine. Nitrogen-Assisted Independent Suspension and Four-Wheel Hydraulic Brakes will keep you in full control. Built for stability and performance.

MOTOR

Engine Type: AC Induction
Battery Voltage: 48
Battery Type: Discover™ Dry Cell
Battery Capacity: 2080 Amp/Hours
Charge Time: 6 - 10 hours
Charging System: 1.2 kW
Horsepower: 30
Torque (ft. lbs.): 220

DRIVE TRAIN

Transmission: L/M/H/N/R
Drive System: 2WD / 4WD
Locking Differential: Front
Final Drive: Direct
Range: > 42 Miles*

CHASSIS / SUSPENSION / BRAKES

Front Suspension: Dual A-Arm
Rear Suspension: Dual A-Arm
Shocks: Hydraulic W/ Nitrogen Assist
Front / Rear Brakes: Hydraulic Disc
Parking Brake: Mechanical
Front Tires: 27 x 9-14
Rear Tires: 27 x 11-14
Wheels: Aluminum

DIMENSIONS

Overall Vehicle (L x W x H): 110" x 62" x 73"
Wheel Base: 72.5"
Cargo Bed Dimensions (L x W x H): 30" x 41" x 11"
Cargo Bed Dump Type: Gas Assist
Cargo Bed Capacity: 500 LBS
Person Capacity: 2
Empty Vehicle Weight Rating: 2,061 LBS
Gross Vehicle Weight Rating: 2,764 LBS
Tow Rating: 1,500 LBS
Ground Clearance: 11"

OTHER

Instrumentation: Analog Speedometer & Tachometer With LCD Rider Information
Winch: 3,500 LBS
Roof: Yes
Windshield: 2-Piece
Brake Lights: Yes
Headlights: High / Low Beam
Turn Signals & Horn: Yes
Doors: Not Available
Electronic Power Steering: Not Available
Warranty: 2-Year Limited
Colors: Camo, Cavalry Blue, HISUN Red, Black Ops, Destroyer Grey
  • Status:
    New
  • Vehicle:
    2023 Hisun Sector E1
  • Model Number:
    #E1
  • Location:
    Naples Powersports and Equipment
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    2

ENGINE

  • Carburetion Type:
    Not Applicable
  • Engine Type:
    Electric
  • Fuel Type:
    Electric
  • Horsepower (bhp):
    30
  • Horsepower (kW):
    22.4
  • Starter:
    Electric
  • Torque (Ft Lbs):
    220
  • Torque (Nm):
    298.3

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Cab Canopy Material:
    Hard
  • CV Boot Cover:
    Yes
  • Frame:
    Steel

GLASS

  • Folding:
    Yes

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Manual

STORAGE

  • Bed Capacity (kgs.):
    226.8
  • Bed Capacity (lbs.):
    500
  • Bed Height (in):
    11
  • Bed Height (mm):
    279.4
  • Bed Length (in):
    30
  • Bed Length (mm):
    762
  • Bed Width (in):
    41
  • Bed Width (mm):
    1041.4
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2
  • Rack Rails Location:
    Cargo Bed

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Type:
    Independent Double A-Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    934.9
  • Dry Weight (lbs):
    2061
  • Ground Clearance (in):
    11
  • Ground Clearance (mm):
    279.4
  • GVWR (kgs):
    1253.8
  • GVWR (lbs):
    2764
  • Height (in):
    73
  • Height (mm):
    1854.2
  • Length (ft):
    9.17
  • Length (ft/ft):
    9
  • Length (ft/in):
    2
  • Length (in):
    110
  • Length (mm):
    2794
  • Towing Capacity (kgs):
    680.4
  • Towing Capacity (lbs):
    1500
  • Wheelbase (in):
    72.5
  • Wheelbase (mm):
    1841.5
  • Width (in):
    62
  • Width (mm):
    1574.8

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Weight (kgs):
    1587.6
  • Weight (lbs):
    3500

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    3
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    27 X 9-14
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    27 X 11-14
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Wheels Composition:
    Aluminum
