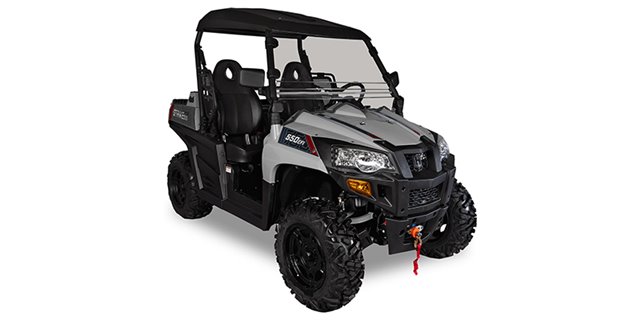

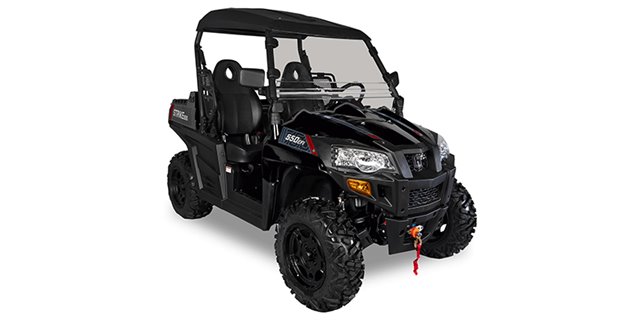

2022 Hisun Strike 550
MSRP: $10,999 USD
Pricing Notes: *MSRP does not include destination charges, taxes, licenses fee or dealer preparation. An additional fee will apply to CARB models.
ENGINE
| Engine Type: | 4-Stroke Single Cylinder OHC |
| Cylinder Displacement: | 546cc |
| Fuel System: | Electronic Fuel Injection |
| Cooling: | Liquid |
DRIVE TRAIN
| Transmission: | Automatic CVT L/H/N/R |
| Drive System: | 2WD / 4WD |
| Locking Differential: | Rear |
| Final Drive: | Shaft |
CHASSIS / SUSPENSION / BRAKES
| Front Suspension: | Dual A-Arm |
| Rear Suspension: | Dual A-Arm |
| Shocks: | Hydraulic w/ Nitrogen Assist |
| Front / Rear Brakes: | 4-Wheel Hydraulic Disc |
| Parking Brake: | Mechanical |
| Front Tires: | 26 x 9-14 |
| Rear Tires: | 26 x 11-14 |
| Wheels: | Aluminum |
DIMENSIONS
| Overall Vehicle (L x W x H): | 106" x 53.5" x 72.5" |
| Wheel Base: | 76" |
| Cargo Dimension (L x W x H): | 23" x 42" x 9" |
| Cargo Bed Capacity: | 350 LBS |
| Person Capacity: | 2 |
| Fuel Capacity: | 7.5 Gallons |
| Empty Vehicle Weight Rating (EVW): | 1,367 LBS |
| Gross Vehicle Weight Rating (GVW): | 2,070 LBS |
| Tow Rating: | 1,200 LBS |
| Ground Clearance: | 12" |
OTHER
| Instrumentation: | Digital Speedometer & Tachometer with LCD Rider Information |
| Winch: | 3,500 LB |
| Roof: | Yes |
| Windshield: | 2 Piece |
| Brake Lights: | Yes |
| Head Lights: | High / Low Beam |
| Turn Signals & Horn: | Yes |
| Electronic Power Steering (EPS): | Not Available |
| Warranty: | 2-Year Limited |
- Status:New
- Vehicle:2022 Hisun Strike 550
- Model Number:#550
- Location:Naples Powersports and Equipment
- Warranty:Manufacturer's w/ Extended Available
BRAKES
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Type:Dual Hydraulic Disc
DRIVE LINE
- Differential Lock Location:Rear
- Driveline Type:Selectable 4X2 / 4X4
- Number Of Driveline Modes:2
ENGINE
- Bore (in):3.27
- Bore (mm):83
- Carburetion Type:Fuel Injected
- Compression Ratio:9.6
- Cooling:Liquid
- Cylinders:1
- Displacement (cc):546
- Displacement (ci):33.3
- Engine Stroke:4-Stroke
- Engine Type:Single-Cylinder
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Starter:Electric
- Stroke (in):3.31
- Stroke (mm):84
- Valve Configuration:OHV
EXTERIOR
- A-Arm Skid Plate (Front):Yes
- A-Arm Skid Plate (Rear):Yes
- Bash Plate (Front):Yes
- Body Material:Plastic
- Cab Canopy Material:Hard
- Cab Door Material:Soft
- CV Boot Cover:Yes
- Frame:Steel
GLASS
- Folding:Yes
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:Halogen
SEATS
- Headrest:Yes
- Number Of Rows:1
- Number Of Seats:2
- Seat Material:Vinyl
- Seat Type:Bucket
STEERING
- Steering Control:Steering Wheel
- Steering Type:Manual
STORAGE
- Bed Capacity (kgs.):158.8
- Bed Capacity (lbs.):350
- Bed Height (in):9
- Bed Height (mm):228.6
- Bed Length (in):23
- Bed Length (mm):584.2
- Bed Width (in):42
- Bed Width (mm):1066.8
- Cargo Bed Material:Polyethylene
- Integral Tie-Down Hooks:Yes
- Number Of Cupholders:1
SUSPENSION
- Front Stabilizer Bar:Yes
- Front Suspension Type:Independent Double A-Arm
- Number Rear Shock Absorbers:2
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Stabilizer Bar:Yes
- Rear Suspension Type:Independent Double A-Arm
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):620.1
- Dry Weight (lbs):1367
- Engine Displacement to Weight (cc):0.4
- Fuel Capacity (gal):7.5
- Fuel Capacity (l):28.4
- Ground Clearance (in):12
- Ground Clearance (mm):304.8
- GVWR (kgs):939
- GVWR (lbs):2070
- Height (in):72.5
- Height (mm):1841.5
- Length (ft):8.83
- Length (ft/ft):8
- Length (ft/in):10
- Length (in):106
- Length (mm):2692.4
- Towing Capacity (kgs):544.3
- Towing Capacity (lbs):1200
- Wheelbase (in):76
- Wheelbase (mm):1930.4
- Width (in):53.5
- Width (mm):1358.9
TOWING & HAULING
- Rear Hitch Type:Receiver
- Weight (kgs):1587.6
- Weight (lbs):3500
TRANSMISSION
- Hi / Low Range:Yes
- Primary Drive (Engine / Transmission):Belt
- Primary Drive (Front Wheel):Shaft
- Primary Drive (Rear Wheel):Shaft
- Reverse:Yes
- Transmission Brand:CVTech
- Transmission Type:Continuously Variable (CVT)
WHEELS & TIRES
- Front Tire (Full Spec):26 X 9-14
- Front Tire Diameter (in):26
- Front Tire Width:9
- Front Wheel Diameter:14
- Rear Tire (Full Spec):26 X 11-14
- Rear Tire Diameter (in):26
- Rear Tire Width:11
- Rear Wheel Diameter:14
- Wheels Composition:Aluminum
