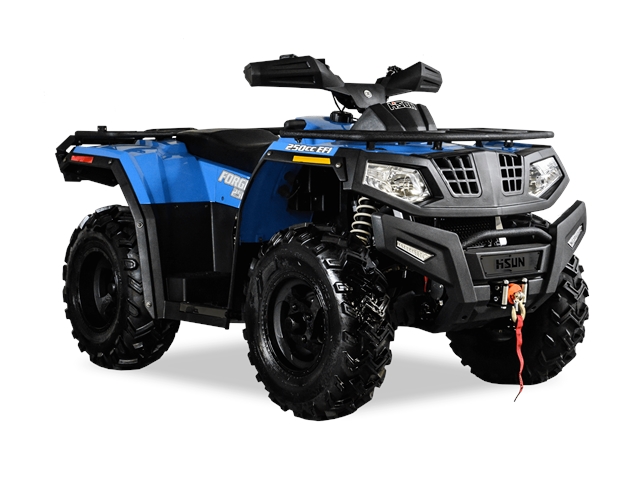

2022 Hisun Forge 250
MSRP: $4,699 USD
Pricing Notes: *MSRP does not include destination charges, taxes, licenses fee or dealer preparation. An additional fee will apply to CARB models.
ENGINE
| Engine Type: | 4-Stroke Single Cylinder OHC |
| Cylinders Displacement: | 229 cc |
| Fuel System: | Electronic Fuel Injection |
| Cooling: | Liquid |
DRIVE TRAIN
| Transmission: | Automatic CVT L/H/N/R |
| Drive System: | 2WD |
| Locking Differential: | N/A |
| Final Drive: | Chain |
CHASSIS / SUSPENSION / BRAKES
| Front Suspension: | Dual A-Arm |
| Rear Suspension: | Swing Arm |
| Shocks: | Adjustable Hydraulics |
| Front / Rear Brakes: | Hydraulic Disc |
| Parking Brakes: | Mechanical |
| Front Tires: | 25 x 8-12 |
| Rear Tires: | 25 x 10-12 |
| Wheels: | Aluminum |
DIMENSIONS
| Overall Vehicle (L x W x H): | 82.5" x 42" x 46" |
| Wheel Base: | 51" |
| Rack Capacity: | Front 44 LB / Rear 77 LB |
| Fuel Capacity: | 2.9 Gallons |
| Empty Vehicle Weight Rating: | 639 LBS |
| Gross Vehicle Weight Rating: | 937 LBS |
| Tow Rating: | N/A |
| Ground Clearance: | 8" |
OTHER
| Instrumentation: | Digital Speedometer & Tachometer With LCD Rider Information |
| Winch: | N/A |
| Brake Lights: | Yes |
| Headlights: | High / Low Beam |
| Turn Signals & Horn: | Yes |
| Cargo Racks: | Front / Rear |
| Warranty: | 2-Year Limited |
- Status:New
- Vehicle:2022 Hisun Forge 250
- VIN:A6HSDNL0JNB000068
- Model Number:#Forge250
- Location:Naples Powersport and Equipment
- Warranty:Manufacturer's w/ Extended Available
BRAKES
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Type:Hydraulic Disc
DRIVE LINE
- Driveline Type:4X2
- Number Of Driveline Modes:1
- Rear Solid Axle:Yes
ENGINE
- Bore (in):2.58
- Bore (mm):65.5
- Carburetion Type:Fuel Injected
- Compression Ratio:9.7
- Cooling:Liquid
- Cylinders:1
- Displacement (cc):229
- Displacement (ci):14
- Engine Stroke:4-Stroke
- Engine Type:Single-Cylinder
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Starter:Electric / Pull
- Stroke (in):2.68
- Stroke (mm):68
- Valve Configuration:OHV
- Valves Per Cylinder:2
- Valves:2
EXTERIOR
- A-Arm Skid Plate (Front):Yes
- Bash Plate (Front):Yes
- Body Material:Plastic
- Brush Guard:Yes
- Floor Board Location:Driver
- Frame:Steel
- Swing Arm Skid Plate:Yes
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:Halogen
SEATS
- Number Of Seats:1
- Seat Location:Driver
- Seat Material:Vinyl
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
- Steering Type:Manual
STORAGE
- Capacity (kgs):20
- Capacity (kgs):34.9
- Capacity (lbs):44
- Capacity (lbs):77
SUSPENSION
- Front Adjustable Fork Pre-Load:Yes
- Front Suspension Type:Independent Double A-Arm
- Number Rear Shock Absorbers:1
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Material:Steel
- Rear Suspension Type:Swing Arm
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):289.9
- Dry Weight (lbs):639
- Engine Displacement to Weight (cc):0.36
- Fuel Capacity (gal):2.9
- Fuel Capacity (l):11
- Ground Clearance (in):8
- Ground Clearance (mm):203.2
- GVWR (kgs):425
- GVWR (lbs):937
- Height (in):46
- Height (mm):1168.4
- Length (ft):6.88
- Length (ft/ft):6
- Length (ft/in):10.5
- Length (in):82.5
- Length (mm):2095.5
- Wheelbase (in):51
- Wheelbase (mm):1295.4
- Width (in):42
- Width (mm):1066.8
TOWING & HAULING
- Weight (kgs):1134
- Weight (lbs):2500
TRANSMISSION
- Hi / Low Range:Yes
- Primary Drive (Engine / Transmission):Belt
- Primary Drive (Front Wheel):Shaft
- Primary Drive (Rear Wheel):Chain
- Reverse:Yes
- Transmission Type:Continuously Variable (CVT)
WHEELS & TIRES
- Front Tire (Full Spec):AT 25 X 8-12 Radial
- Front Tire Diameter (in):25
- Front Tire Width:8
- Front Wheel Diameter:12
- Rear Tire (Full Spec):AT 25 X 10-12 Radial
- Rear Tire Diameter (in):25
- Rear Tire Width:10
- Rear Wheel Diameter:12
- Tube / Tubeless:Tubed
- Wheels Composition:Aluminum
